In this article I want to explain what IP CCTV actually offers that older analog systems don't — because the difference matters more than camera resolution alone. IP cameras transmit video data as network packets rather than analog signal, which means each camera has an IP address, can be configured remotely, sends alerts to your phone when motion is detected, and streams live video to a smartphone app from anywhere in the world. For Bali villa owners who manage properties remotely, or who travel regularly, IP CCTV with remote view is the primary value proposition — not just security recording, but active visibility from anywhere.
IP CCTV System Components
IP Cameras (Indoor & Outdoor)
We install Dahua, Hikvision and Uniview IP cameras — the main brands stocked and supported in Bali with available spare parts and firmware support. Standard outdoor fixed cameras for perimeter and entrance coverage, PTZ (pan-tilt-zoom) cameras for wider area monitoring, and indoor dome cameras for interior spaces. Camera selection based on the specific monitoring requirement and lighting conditions at each location.
NVR (Network Video Recorder)
Central recording device storing camera footage on hard drives. NVR capacity specified based on number of cameras, recording resolution, and required retention period. For a standard 4-camera villa system at HD resolution: 2TB NVR provides approximately 15–20 days of continuous recording. For 30-day retention at 1080p from 4 cameras: 4TB recommended.
PoE Switch & Cabling
IP cameras powered and connected via a single network cable (Power over Ethernet). PoE switch provides both data connection and power. Proper cable routing and conduit protection is essential for Bali's outdoor conditions — UV exposure degrades standard cables within 2–3 years without conduit protection.
Remote View Configuration
Smartphone app setup for remote live view and recording playback from anywhere in the world. Port forwarding or P2P cloud connection configured at installation. We test remote view from outside the local network before completing installation — not just confirm it works on the local WiFi.
Bali-Specific Installation Considerations

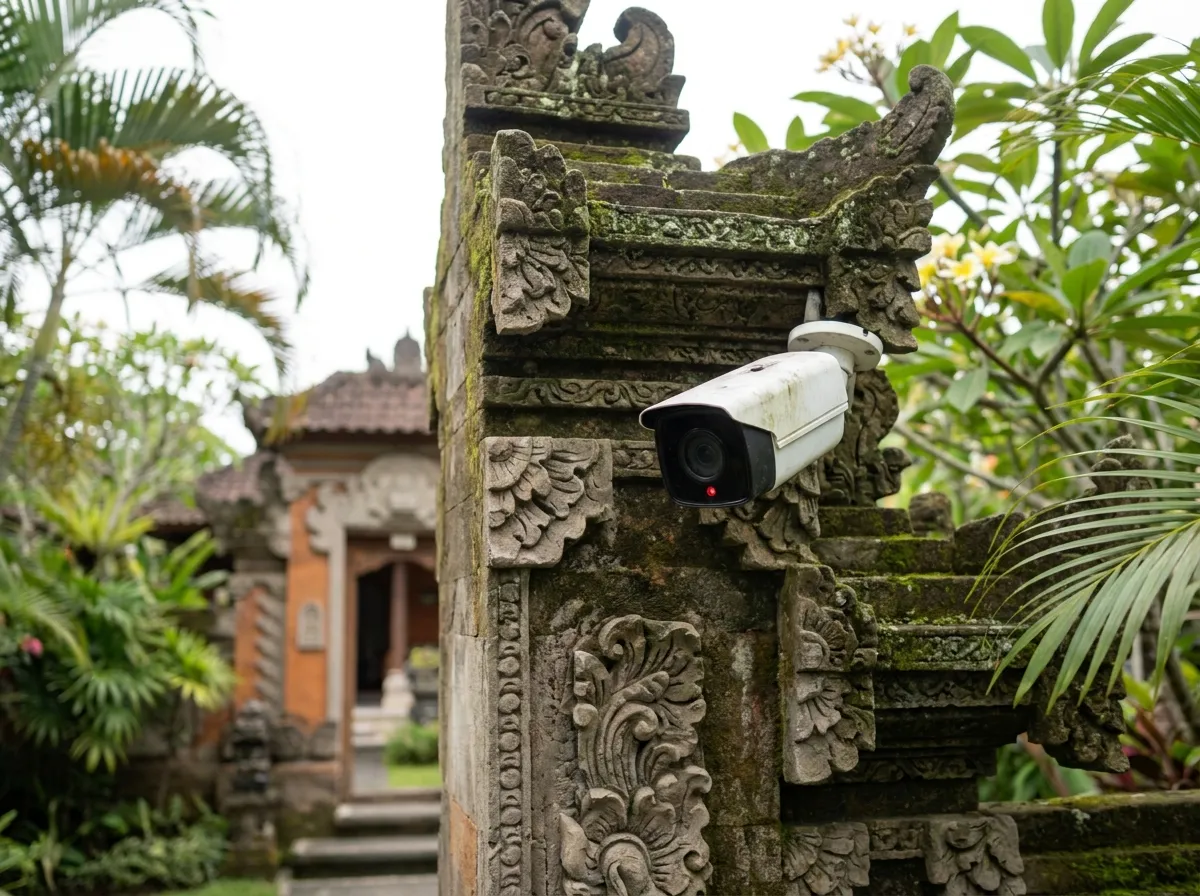

Coastal camera housings: standard IP camera ratings (IP66 weatherproof) handle rain adequately but don't address salt air corrosion of metal components in coastal areas. For Jimbaran, Uluwatu, Nusa Dua and Seminyak beach-adjacent installations, we specify cameras with stainless steel mounting hardware and marine-grade cable glands.
Internet reliability: IP camera remote view depends on the property's internet connection. Bali's internet — primarily IndiHome or Biznet fibre — is generally reliable in built-up areas. We recommend a UPS (battery backup) on the router and NVR so that power interruptions don't create recording gaps. For areas with frequent internet outages, we configure local NVR recording as the primary method with remote view as secondary.
Tropical cable degradation: all exterior cable runs in conduit or armoured cable. No exposed CAT6 cable — it degrades within 18 months in direct tropical sun and heat exposure, producing intermittent camera dropouts that are difficult to diagnose.
FAQ
How many cameras does a Bali villa need?
For a standard 2–3 bedroom villa: 4 cameras covers all entrances, pool area, and carport. For a larger 4+ bedroom villa with multiple access points: 6–8 cameras. We design the coverage plan before quoting — you should know exactly what each camera will see before installation.
Can I view my Bali villa cameras from Europe or Australia?
Yes — this is the primary reason most villa owners install IP systems. We configure remote view via the manufacturer's app (Dahua DMSS, Hikvision Hik-Connect) and test it from a cellular connection outside the local network before completing installation.
How long does CCTV installation take in Bali?
A standard 4-camera villa system with cabling: 4–8 hours. Larger systems or complex cabling routes take longer. We provide a time estimate after the site survey.
Areas Covered
Ready to Install CCTV?
Tell us the property type, number of floors, and what you want to monitor. We'll propose a camera layout and quote the installation.
